Access Violation Message in module ig9icd32.dll or ig9icd64.dll

<< Click to Display Table of Contents >>

Navigation:  Problems during the Software Use >

Access Violation Message in module ig9icd32.dll or ig9icd64.dll







Applies to:

Design Excess Licenses



Issue

The program displays an Access Violation Messages including any of the following texts:

“Access violation”

“ig9icd32.dll”

"ig9icd64.dll"

The error may occur:

Using the program

Creating a new design

Opening an existing design

Cause

That "'ig9icd32.dll / ig9icd64.dll" error is actually related to the Intel video card on the computer (it is not a software error). Windows recently released an update and, for some Intel video cards, reverted back again to a non-working driver... and won't let you update to the Universal drivers (the latest ones on Intel website) because this rolled back non-working driver is labeled as customized.

In fact, if you try to install these Universal Drivers, you will get a "Driver attempting to install is not validated for this computer. Please obtain the appropriate driver from the computer manufacturer" message. To bypass this message, you must install a non-customized legacy driver first and then upgrade to the Universal drivers.



How to proceed



Update the software to its latest version. Version 17.20 and Version 20 include a fix for this issue.



IMPORTANT



On version 17.11, we discovered this issue, involving certain specific Intel video cards. These video cards are in conflict with an OpenGL function the software uses.

On February 2019, we released a patch for version 17.11, which solved the issue.

Version 17.20 and Version 20 include the fix and the possibility to check (or uncheck) the OpenGL function. It comes enabled by default.

Most video cards won't be affected by this setting. On the other hand, the ones that are affected (these specific Intel video cards) need to have the OpenGL function disabled.

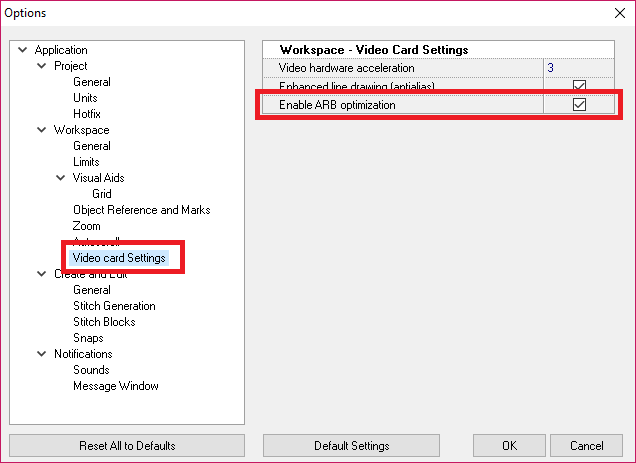

To disable it, uncheck the "ARB OPTIMIZATION", located in the program settings:



AV_ig9icd32_11
